Tokina atx-m 33mm F1.4 X Review

Optical Design Graphs of this review were taken from the official Tokina website (www.tokinalens.com).
All other photos of this review were captured by Christophe Anagnostopoulos.
November 20, 2020 -> Full Review was published.
*Please note that until the time of writing this review, Adobe hadn’t released a Lens Profile for Camera Raw/Photoshop/Lightroom.*

Intro

In the last couple of years (starting from 2017), Tokina has completely redesigned and changed its lenses line-up, introducing and releasing four (4) new series of lenses (opera, FiRIN, atx-m, SZX), while also had completely redesigned their best selling atx series (now atx-i), in order to follow all the modern day standards as also photographer’s needs.

All of the latest Tokina lenses are of highest quality and performance, covering the most popular camera mounts and almost all focal lengths, with types of lenses from ultra wide angle, to premium primes and macro, giving the ability to the photographer to capture some amazing photos and videos in almost all photographic genres.

Now Tokina further expands its line-up, becoming the first major Japanese third party manufacturer that enters the very popular Fujifilm X Mount system.
And in this review we will take a detailed look into one of the first lenses from Tokina for this mount, the
atx-m 33mm F1.4 X.

Regarding the name of the new series, Tokina preserved the “atx” word which is ensuring that advanced technologies are present in this new line of lenses as well, while the “m” letter, who stands for “motif” and “mirrorless”, means that the design and specifications of all the new lenses of the series, will help the photographer create unique and breathtaking photos with mirrorless cameras.

Important Notice: At the time of preparing all the needed material and information for this review, in example when making the tests and photographing outdoors, till today November 20th, Greece is once again in Lockdown, which practically means that the amount of time that could be spend outdoors was very limited.
So please forgive me for the low amount of images, as also the lack of specific genres like street photography, etc.

Image Samples with Tokina atx-m 33mm F1.4 X lens

Why 33mm?

The focal length of 33mm on a Fuji X camera is the equivalent of 50mm on a Full Frame sensor, which is probably one of the most used ones in the photography world (along with that of 35mm), no matter the type of photography genre.
From portraits to documentary, from landscape to
street photography, or even weddings and videos, this focal length is so versatile that it can be used in almost every scenario.
This is the reason that almost all photographers want to have this type of lens in their camera bag.

Fuji X Mount

The Fuji X System is one of the most popular currently on the market, despite not being Full Frame, mainly because of the excellent image quality of Fuji cameras and most importantly for the analog, film-like feeling in terms of result in photos as also in overall user experience.

Fuji is one of the very few camera companies originating from the analog/film era that completely understood the needs of the digital/modern industry and fully adapted to that, while maintained at 100% its mentality and philosophy.

Build Quality, Lens Handling & Design

The Tokina atx-m 33mm F1.4 X lens has a sleek, minimalistic and modern design following the guidelines and standards of all the latest Tokina lenses, while also fitting perfectly to the Fuji design style.

The lens, which is made in China with high quality standards and materials, has a metallic housing with a subtle glossy black finish.
It is very well built, it feels very robust and solid at touch, and although it isn’t weather sealed, I suppose that it can withstand some normal weather elements, like a light rain (the weather is still summer-ish in Antiparos and I didn’t have the chance to test it in extreme conditions yet, sorry).





Size

Despite its metallic construction, the weight of the lens is only 272g (without the lens hood and front/rear caps), and has a physical size of 72mm x 62mm.
The lens is very small and lightweight which practically means that you can easily leave it attached on your camera all day without tiring, fitting perfectly on all Fuji X System cameras, from entry level to pro models.



Mount

The mount is made of metal and it doesn’t have any dust protective rubber ring.
The electronic contacts are providing full communication with the camera body so all in-camera corrections will be applied, and in case the camera model is one of the latest with IBIS (i.e. X-H1, X-T4, X-S10), then the 5-Axis Image Stabilization will work perfectly.

Please note that there is a small plate on the mount.
I asked Tokina about this, and they informed me that this is part of the internal production and adjustment process.
My guess is that the metallic plate was placed in order to minimize possible dust or water insertion on the lens, although I didn’t receive any further information about this.

Fujifilm AF Protocols?

Although there is no official information about a possible connection between Tokina and Fuji, I strongly believe that the lens was manufactured according to Fuji AF protocols.
My thoughts are based on a press release from a Fuji official back on April 2020,  shortly after Tokina first announced the development of the new atx-m 33mm F1.4 X lens, that their lens protocols are open and Tokina is the first to take advantage of it.

If this is indeed correct, that practically means that no reverse engineering has been used in the design of this lens, and that ensures the best possible lens performance.

Focus Ring

The focus ring has a large size (covering almost 60% of the lens barrel) with a good solid grip.
I
t has a very smooth feeling when focusing, offering the proper level of resistance to the user.
In addition with the “Linear” Focus Ring Operation option in the camera menu, the manual focus experience resembles (in a certain point) that of a mechanical focusing lens.
The lens utilizes the Focus-By-Wire implementation for focusing, something that allows
smoother and silent autofocus.



Aperture Ring

Following the Fuji design philosophy, the lens features a dedicated Aperture Ring to provide the best possible user shooting experience.

It is way smaller than the focus ring but it has a good solid grip, and it is located near the mount so its unlikely to be changed accidentally.
In terms of changing the aperture by hand, although the ring feels more stiffer comparing to the focus ring, it again provides the proper level of resistance when changing aperture.

Its very important to note that the aperture ring is click-less, providing the ability to the user to manually change the aperture very smoothly (extremely helpful in video mode), while also having an “A” position for Automatic Aperture change directly from the camera.
However, there is a soft clicking mechanism between F16 and A positions to prevent accidental miss-setting.

Personally, I would love to see the implementation of Tokina FiRIN 20mm F2 MF here as well, with a small switch on the body that gives the ability to the photographer to change between clicked or click-less aperture easily.
When shooting video, click-less aperture is a must have, however when shooting stills I find it better for my shooting style to feel that small click when changing aperture.

Lens Hood

The included BH-524 Lens Hood is made of metal and it can be stored in the lens by attaching it on reverse.
It has a normal size, fitting perfectly with the overall lens looks in both terms of size and build quality, and it can protect the front element from unwanted hits or scratches, while also preventing any unwanted artifacts from incoming light.



Filters

Lastly, on the front of the lens, there are no markings in example like mentioning the lens model.
The filter thread takes regular screw-on filters and it has a diameter size of 52mm.

*Testing Notes*

All indoor tests took place in my photography studio in a controlled lighting environment.
Dedicated lighting scenarios were created depending the needs  of each test.
The Lab Chart Test is “ISO 12233”.
Other Tools used: i) SpyderCheckr24 & ii) Spyder LensCal.

The camera used for this review was a Fuji X-T3 with Firmware version 4.00.

Autofocus

Autofocus in Photography

The lens features an ST-M focus motor, which is almost totally silent in its operation.
The autofocus speed is very quick and accurate on my Fuji X-T3 even when used wide open at F/1.4.

Eye-AF is also working properly and accurately, and in case of manual focusing, Focus Peaking function is working properly thanks to the transmittance of data via the electronic contacts.
Please note that there is no AF/MF switch on the lens, but accurate focus adjustment can be executed manually at any time by turning the focus ring.



The minimum focusing distance is 30cm, and in general I didn’t encounter any issues when focusing close to subject.
Actually, the minimum focusing distance along with the focal length and wide aperture of F1.4 can create some really interesting compositions.

In general I found it very easy and simple to achieve manual focusing in almost all situations, both in daytime and at low light.

Autofocus in Video

Everything that was mentioned on the previous Autofocus part for stills, also applies in Video Shooting as well.
The lens focus motor is silent, so the chances of recording the focus motor are minimal (except if its deadly quiet out there).
Regarding AF speed, tracking and accuracy the lens performance is very good, making it a great option for run-and-gun/gimbal video shooters, like in example in weddings.

Optical Design

Despite its relatively small size, Tokina Technology is 100% present, as the lens features a complex optical design with 10 elements in 9 groups, including one (1) Super-Low Dispersion Glass Element, which are eliminating chromatic and spherical distortions, as also reducing any ghosting and flaring. By using this design, the lens allows optimal resolution even with the aperture wide open at F1.4.
Tokina’s exclusive Super Low Reflection Multi-Coating is present as well, providing very good contrast levels across the frame, with natural color rendering and water/oil/dust repellent abilities.
Lastly, the lens features a diaphragm of nine (9) blades and the angle of view is 46 degrees.

Technical Specifications

  1. Mount Type: Fuji X
  2. Focal Length: 33mm (50mm equivalent in FX)
  3. Compatible Format(s): APS-C
  4. Maximum Aperture: f/1.4
  5. Minimum Aperture: f/16
  6. Angle of View (FX-format):46°
  7. Elements: 10
  8. Groups: 9
  9. Diaphragm Blades: 9
  10. SD (Low Dispersion) Glass Elements: 1
  11. Coatings: Multi-Coated
  12. Filter Size: 52mm
  13. Image Stabilization : N/A
  14. Autofocus: Yes
  15. Focus Mode: Autofocus/Manual Focus
  16. Macro ratio: 1:10
  17. Minimum Focus Distance: 0.40m
  18. Length: 72mm
  19. Diameter: 62mm
  20. Weight (Approx.): 282 g
  21. Hood: Round Bayonet type BH-524 (included)

Optical Performance

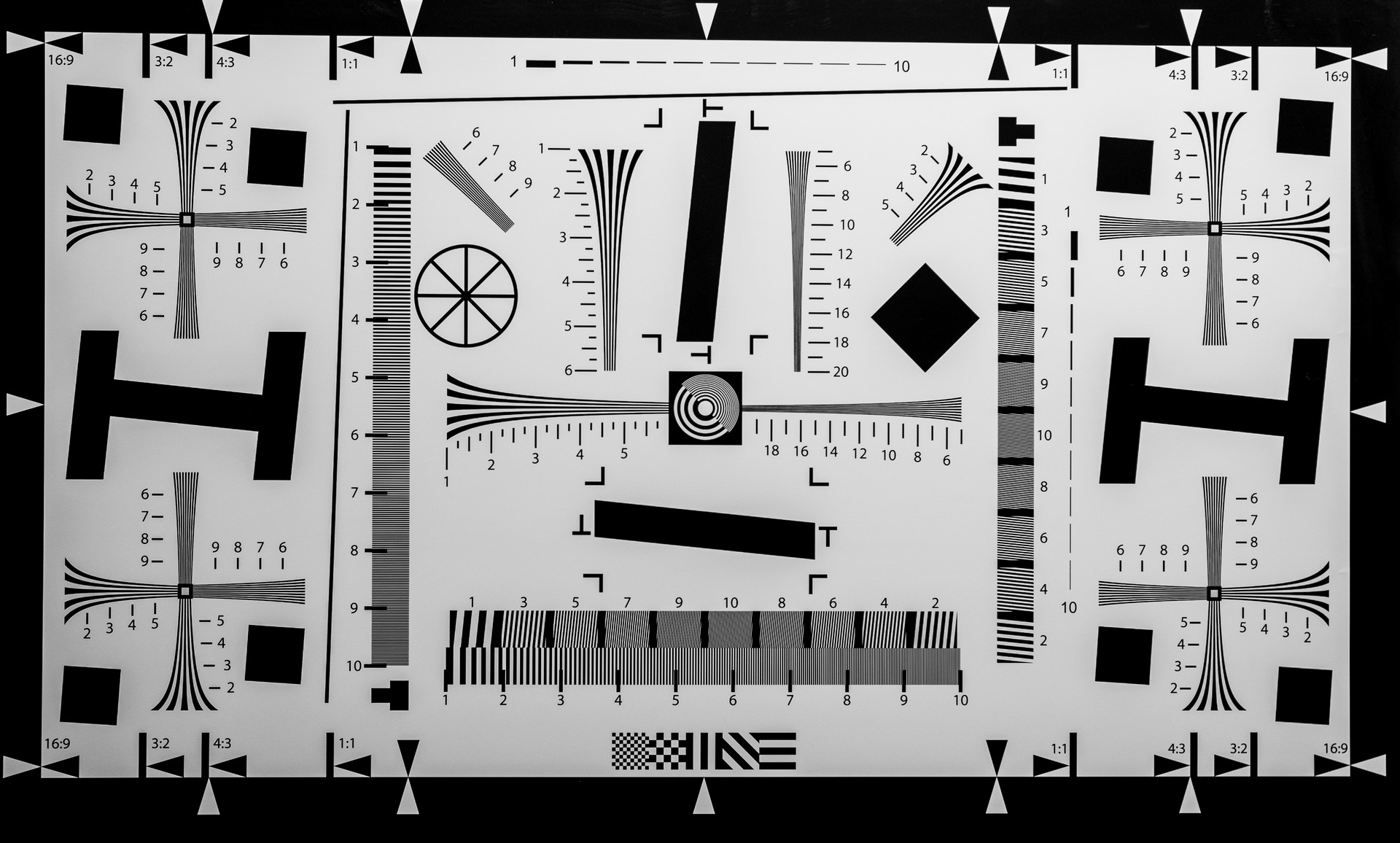

Sharpness Lab Test

The lens delivers very good results in the center at F/1.4 and good sharpness levels at the edges.
From F/1.6 till F/2.8 the center remains very good and the corners are slightly sharper, scoring a very good rating in edge to edge sharpness.

F1.4

100% Crop @ Left Corner

100% Crop @ Center

100% Crop @ Right Corner

From F/4 till F/8 sharpness is in excellent levels in the center and very good at edges, scoring a fantastic rating in overall sharpness across the frame.
From F/9 overall image sharpness is starting to reduce slightly, delivering a good overall image sharpness, with some loss in detail.



F1.6

F1.8

F2

F2.2

F2.5

F2.8

F4

F5.6

F8

F11

F16

Sharpness in Real Conditions

No matter how useful may the lab tests be, as they can show potential flaws in lens design or make a lens look fantastic into the sterile environment of the lab,  it is also very important in my opinion to check every lens in real-life conditions. Only then you can find out if the lens is indeed so good or not so good.

In the case of the atx-m 33mm F1.4 X, the lens is indeed very sharp wide open at the center of the frame with good sharpness levels at the edges of the frame, but most importantly for me it was such a joy to use it! I honestly don’t mind if the edges are a little softer than it could be, I liked the fact that the lens can create easily some nice looking pictures.

Full Image @ F1.4

100% Crop @ F1.4

Focus Shift

Focus Shift is an optical problem that can result in blurry images and many focus errors when working with wide aperture lenses and usually the subjects are in close working distance.

According to my tests, in the case of Tokina atx-m 33mm F1.4 X lens there are no visible signs of focus shift when changing focus.

The target was a Spyder LensCal tool and it was placed at lens minimum focusing distance of 40cm.

F1.4F8

Bokeh

The nine (9) blade diaphragm along with the wide aperture of F1.4 can create some really nice transitions between the in and out of focus areas, and of course, create a delicate and beautiful bokeh.

Although the APS-C sensor in theory cannot create the same depth of field and end result comparing to a Full Frame sensor, I found the bokeh performance of the atx-m 33mm lens wide open at F1.4 to be very good in the center in terms of bokeh effect and rendition of the focused areas, looking very similar to a 50mm FX lens.

However, please note that when wide open at F1.4, there is a slight deformation effect (“cats-eye”) on the bokeh near the edges of the frame, like shown in the images below.

100% Crop of the previous photo

100% Crop of the previous photo

Chromatic Aberration

Chromatic aberrations, or fringing, are those green and purple color halos around areas of difficult (high) contrast transitions.

In the case of Tokina atx-m 33mm F1.4 X, Chromatic aberrations are well controlled thanks to lens optical design.
The lens is producing around 5 pixels of CA at wide apertures (from F1.4 to F2.5), but it is something that it can easily be fixed in post processing.
More specifically, A) purple CA is visible from F1.4 to F2, and after F2.2 it is not visible, and B) green CA is visible from F1.4 to F2.2, and after F2.5 is not visible.
Still, as said before, this can be easily fixed in the lens correction tool in Adobe Camera Raw/Photoshop/Lightroom.

F1.4

F1.6

F1.8

F2

F2.2

F2.5

F2.8

F4

F5.6

F8

F11

F16

Flaring

Thanks to Tokina’s Exclusive Multi Coating technologies, the Tokina atx-m 33mm F1.4 X lens performs very good when shooting against very bright sources of light.

Depending on the light source angle, there might be some very small signs of flaring, but it is very easy to remove them in post processing.



F/1.4

F/2

F/2.8

F/4

Color Rendering

As mentioned before, due to Tokina’s exclusive Super Low Reflection Multi-Coating, the Color Rendering of atx-m 33mm is very good.
The lens delivers
natural like* colors without oversaturation.
Color rendering is also bound to Contrast and the lens contrast performance is also very good, as it captures accurately the boundaries of areas with different luminance levels.

*Please note that depending on the Fuji Film Simulation style that you may have selected, colors are bound to be produced different in your Jpeg files (Raw files are not affected).

Color Contribution Index

CCI means Color Contribution Index, that measures the light transmission values of the lens. Particularly, it is a three number system which describes the degree to which a lens is expected to change the overall color of a photograph relative to that obtained with no lens in the system. Compared to the location of the ISO standard point, actual value point tends to be closer to warm tones (Yellow, Red), but stays within the ideal coordinates that proves natural and well balanced color reproduction ability of the lens.

Information from Tokina Global Website

Vignetting

There is a moderate amount of light fall-off towards the borders from F/1.4 to F2.8 which can be fixed on post.
Stopping down reduces the amount of vignetting, and from f/3.2 it renders invisible.
For most subjects this is not an issue, and I personally like it, as it creates a beautiful “separation effect” between the focused person/object and the background.

F1.4F2.8

F1.4

F1.6

F1.8

F2

F2.2

F2.5

F2.8

F4

Comatic Aberration (Coma)

Coma is an optical aberration that afflicts off-axis light and it is caused by the curvature of the principal planes of the optical system.
Coma becomes apparent when the light rays from the source enter the lens at an indirect angle causing the image to be off axis.
The result is a comatic spot in shape, having a bright central core with a triangular flare extending toward the optical axis of the lens.

Although this lens was not designed for astrophotography, still I wanted to test it and see its performance.

As happens with almost all wide aperture lenses, the Tokina atx-m 33mm F1.4 X lens has strong coma levels wide open at F1.4 near the edges of the frame.
From F1.6 to F1.8 coma levels are improving, and at F2.2 they are eliminated almost completely.
However, due to lens focal length, I suppose that it could be used in conjunction with  a star tracker, and if stopped down to F3.2 or F4 for increased details, there won’t be any visible signs of coma.
Still, as previously mentioned, this lens was not designed for astro shooters, and for sure can create some very nice low light images.



Full Image @ F1.4

100% Crop @ F1.4

F1.6

F1.8

F2

F2.2

F2.5

F2.8

Distortion

According to my tests with the atx-m 33mm F1.4 X, the barrel distortion is rather minimal (more close to zero), with no need to apply auto-corrections, so the lens performance on this aspect is perfect.

Personal Thoughts

Through this section of my reviews, I have many times expressed my thoughts, that the needs of most photographers nowadays are to have high quality and performance lenses (and cameras) with the smallest possible size factor.

With Mirrorless cameras users growing very fast, as almost all the latest camera models are offering strong solid performance and high image quality, small but capable bright aperture lenses with affordable price tags (especially after covid pandemic) are potential winners, becoming easily best-sellers.

Tokina really excelled in both these aspects, delivering a solid overall performance-bright aperture lens, with the smallest possible form size (for its wide F1.4 aperture) that it can be used in both stills and video shooting.

The Tokina atx-m 33mm F1.4 X is a very exciting, such a joy-to-use lens, that it can create some very beautiful photos and videos, and it will make you to want to try and find different angles, experimenting a lot in your shots.

Now I just hope that more lenses are coming from Tokina for the X-Mount (via the atx-m series), covering different focal lengths (ultra wide angle, tele, macro) and sizes (pancake F2.8).

Conclusion

“Another great lens from Tokina to the X-Mount!
A lens of high quality, that surpasses its competitors with its performance, packed in a modern, small and lightweight body.
It comes with a fast, accurate and totally silent AF, which further adds to its high versatility, making it suitable for hybrid video and stills shooters.
And all that, in a very affordable price tag! An upcoming best seller for the X system users.”

Ratings

Build Quality:8.6 out of 10 stars (8.6 / 10)
Handling:9 out of 10 stars (9.0 / 10)
Size and Weight:9.1 out of 10 stars (9.1 / 10)
Optical Performance:9 out of 10 stars (9.0 / 10)
Bokeh Quality:8 out of 10 stars (8.0 / 10)
Features:7.9 out of 10 stars (7.9 / 10)
Focus Speed and Accuracy:9.1 out of 10 stars (9.1 / 10)
Value for Money:9.9 out of 10 stars (9.9 / 10)
Average:8.8 out of 10 stars (8.8 / 10)

Highly Recommended!

Tokina atx-m 33mm F1.4 X
